35 watts TDA2050 Amplifier mono
I know you want to see an example circuit. Here is a simple circuit.
Ready to get started?
Look:

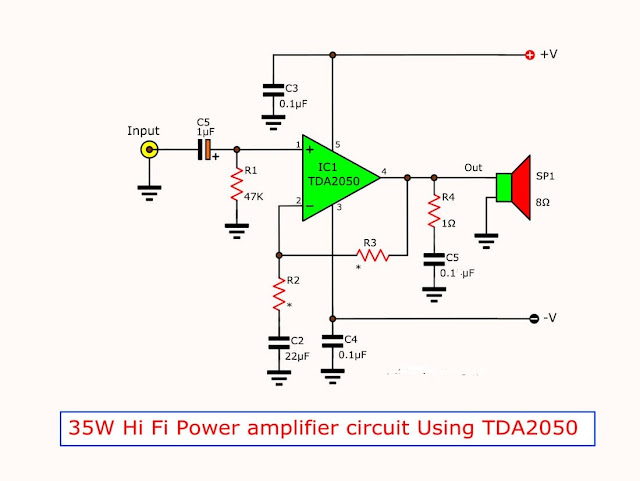

Circuit diagram of 35 watts amplifier using TDA2050.
Parts you will need
Electrolytic Capacitors
C2: 22uF 50V
C6, C7: 2,200uF 50V
Mylar or Ceramic Capacitors
C3,C4, C5: 0.1uf, 104
C8, C9: 0.1uF
Resistors, 5% tolerance
R1: 47K
R2: 680 ohms
R3: 22K
